Cardboard Shredder with 240v inverter 1.5kW

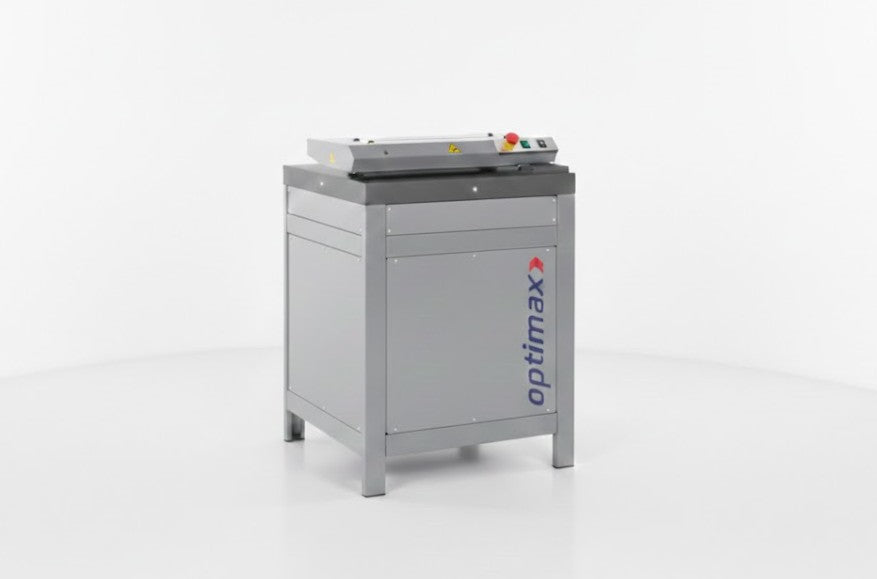

Optimax OCS422240V Cardboard Shredder with Inverter (1.5kW)

Product Overview:

The Optimax OCS422240V is a heavy-duty industrial shredding unit engineered to repurpose redundant packaging boxes into high-grade, sustainable void fill and protective matting. Powered by a high-torque 1.5kW motor paired with a 240V inverter drive, this commercial unit enables packing facilities and warehouses to lower waste disposal expenditure while producing an on-demand, plastic-free alternative to synthetic bubble wrap and air cushions.

Key Benefits:

• Sustainable Void Fill Production: Converts scrap corrugated board into high-yield, flexible packing netting, cutting the cost of purchasing primary void fill materials.

• Double-Wall Processing Capacity: Powerful 1.5kW motor cuts through board up to 18mm thick, handling heavy-duty multi-wall cartons without jamming.

• Rapid Output Rate: Operates at a feed velocity of 13 metres per minute, generating up to 6 cubic metres of cushioned material per hour to keep up with intensive dispatch schedules.

• Clean Warehouse Air: Integrated dust-extraction port connects directly to workshop vacuum systems to prevent fine airborne cardboard particles around packing stations.

• Standard Power Compatibility: An advanced 240V inverter converts single-phase input into 3-phase motor torque, delivering heavy-duty industrial performance from a standard 240V electrical connection.

• Rigorous Safety Compliance: Built to meet BS EN ISO 13857:2008 and IEC/EN 60204-1 standards, ensuring full operative safety during high-volume feeding.

Technical Specifications:

• Product Code: OCS422240V

• Motor Rating: 1.5kW

• Power Supply: 240V (Single to 3-Phase Inverter)

• Maximum Cutting Width: 420mm

• Maximum Board Thickness: 18mm

• Feed Speed: 13m per minute

• Production Capacity: Up to 6m³ per hour

• Compliance Standards: BS EN ISO 13857:2008, IEC/EN 60204-1

Why Buy This Product?

This industrial Optimax OCS422240V cardboard converter pairs an expansive 420mm feed throat with 18mm board capacity and a 240V inverter drive, allowing dispatch operations to cut waste removal charges and generate high-yield, protective eco-matting straight from redundant boxes.

OCS4222240V Technical Spec Sheet

Commodity: 8441102000
